PC60-Z Smart Multiparameter Meter

PC60-Z Smart Multiparameter Meter

Description

The APERA Instruments PC60-Z Smart is the latest generation meter to make your water analysis even easier and more effective. Professional measurements for pH, conductivity (EC), TDS (ppm), salinity (ppt), resistivity and ORP (requires a separate ORP electrode) are now easier than ever. Simply connect the meter to your smartphone and the step-by-step instructions will guide you through the measurement.

A piercing pH electrode (PH60S-DE for solid samples) and a flat pH electrode (PH60F-DE for flat surface measurement) are also compatible with the meter to meet your specific requirements.

  • Professional measurement of pH, conductivity, TDS, salinity, resistivity and temperature; measurement of ORP is also possible (the ORP60-DA electrode is required)
  • Cloud-based data management system – With this cloud-based data management system, you can record, manage and share your test data directly without worrying about data loss
  • Comprehensive information display – 4 types of measurement display modes for different situations.
  • Improved pH sensor – more durable and user-friendly
  • Meter can also be used without smartphone

The Apera Instruments PC60-Z Multi-Parameter Meter has a 2-year manufacturer’s warranty (6 months on the electrode).

Technical Specifications

pH Measuring range -2.00 to 16.00
Resolution 0,01
Accuracy ±0.01, ±1 digit
calibration Automatic 1 to 3 point calibration
Temperature compensation 0 to 50 °C (automatically)
conductivity Measuring range 0 to 20.00 mS/cm
Resolution 0.1/1/10 μS/cm
Accuracy ±1 % F.S
Temperature compensation 0 to 50 °C (automatically)
TDS Measuring range 0.1 ppm to 10.00 ppt
TDS factor 0.40 to 1.00

Salinity

Measuring range 0 to 10,00 ppt
Spec. Resistance Measuring range 50 Ω-cm to 20 MΩ-cm
Temperature Measuring range 0 to 50 °C
Resolution 0,1 °C
Accuracy ±0,5 °C
More Power supply 4 × AAA batteries
Operating time Up to 1000 hours
Housing protection class IP67 (waterproof and floatable)
Dimensions 40 × 40 × 178 mm (with case 255 × 210 × 50 mm)
Weight 133 g (with case 800 g)

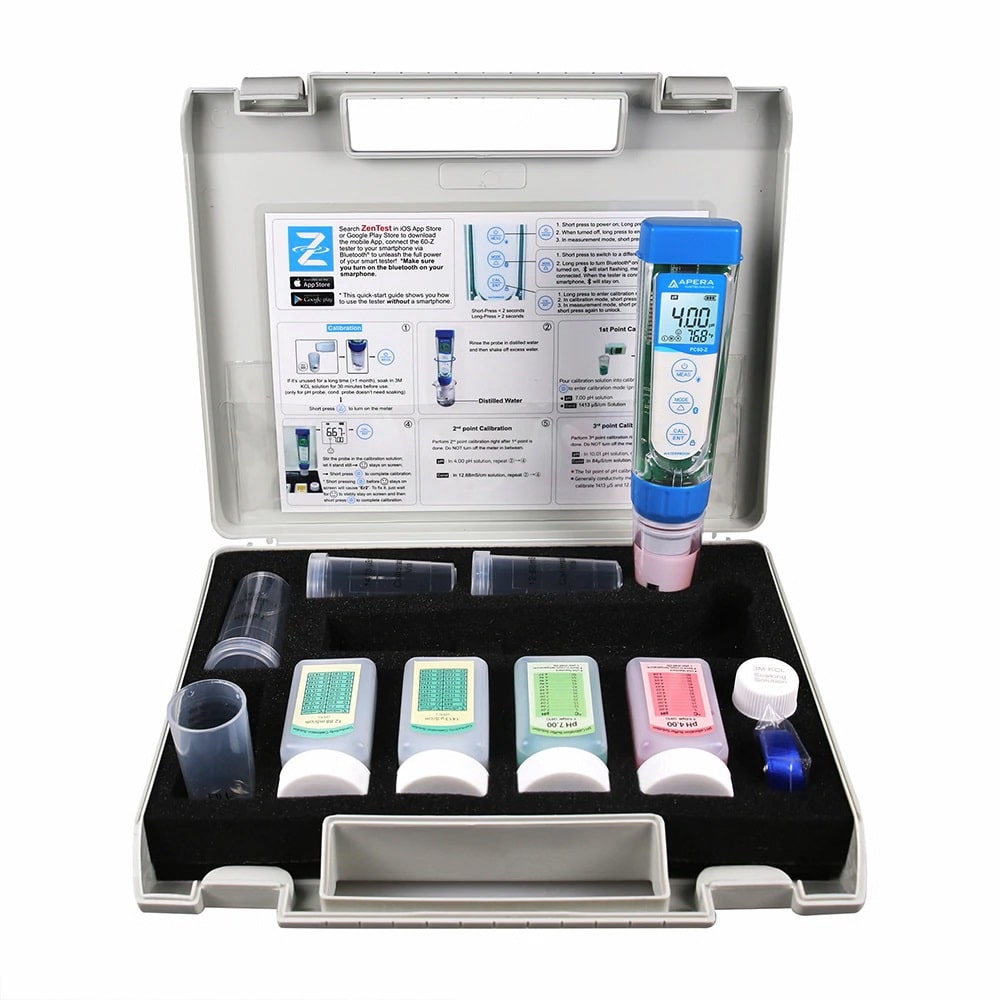

scope of delivery

A complete set contains:

  • PC60-Z measuring device
  • Calibration solutions (pH 7.00/ pH 4.00, 50 ml each)
  • Calibration solutions (1413 μS/cm; 12.88 mS/cm, 50 ml each)
  • 4 Calibration vials
  • 3M KCl Electrode Storage Solution
  • Lanyard
  • Carrying case

manual

German PC60-Z DE
English PC60-Z EN
Italian PC60-Z IT
